Description
Solis FlexHome-CB50A-H is the original 50 A high-voltage control module and physical base package for a documented FlexHome-H battery tower. It coordinates battery communication, system protection and charge/discharge requests; it stores no energy by itself.
Correct high-voltage model

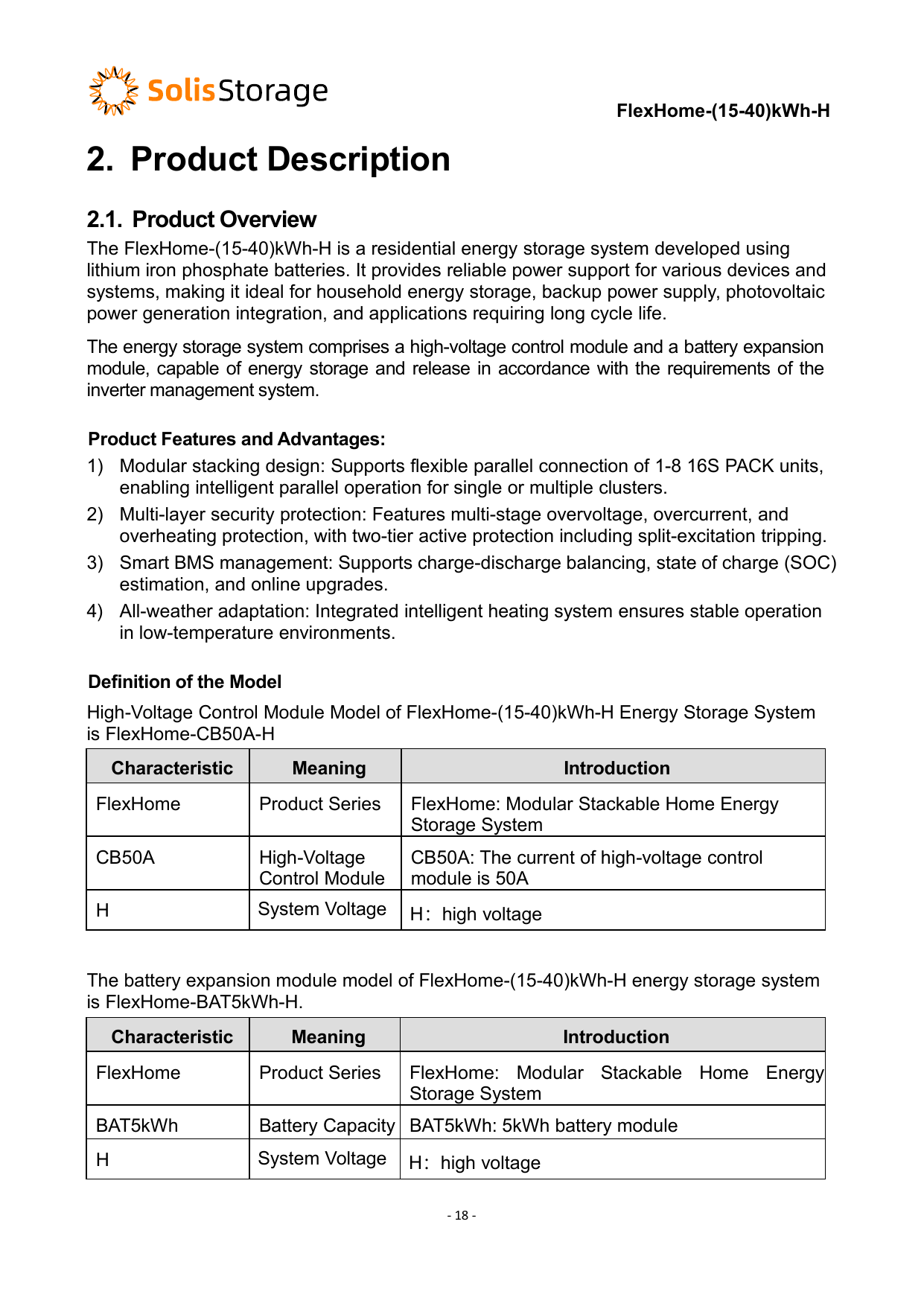

The official English FlexHome-H manual identifies the high-voltage control unit as FlexHome-CB50A-H. This offer supplies that model.
- System: SolisStorage FlexHome-(15–40)kWh-H
- Required modules per cluster: 3–8 × FlexHome-BAT5kWh-H
- Continuous charge/discharge current: 50 A
- Peak current: 75 A for 10 seconds
- Maximum system charge/discharge power: 20 kW
- Communication: CAN / RS485
- Parallel expansion: up to four correctly engineered clusters, 160 kWh total
- System enclosure rating: IP66
Documented package

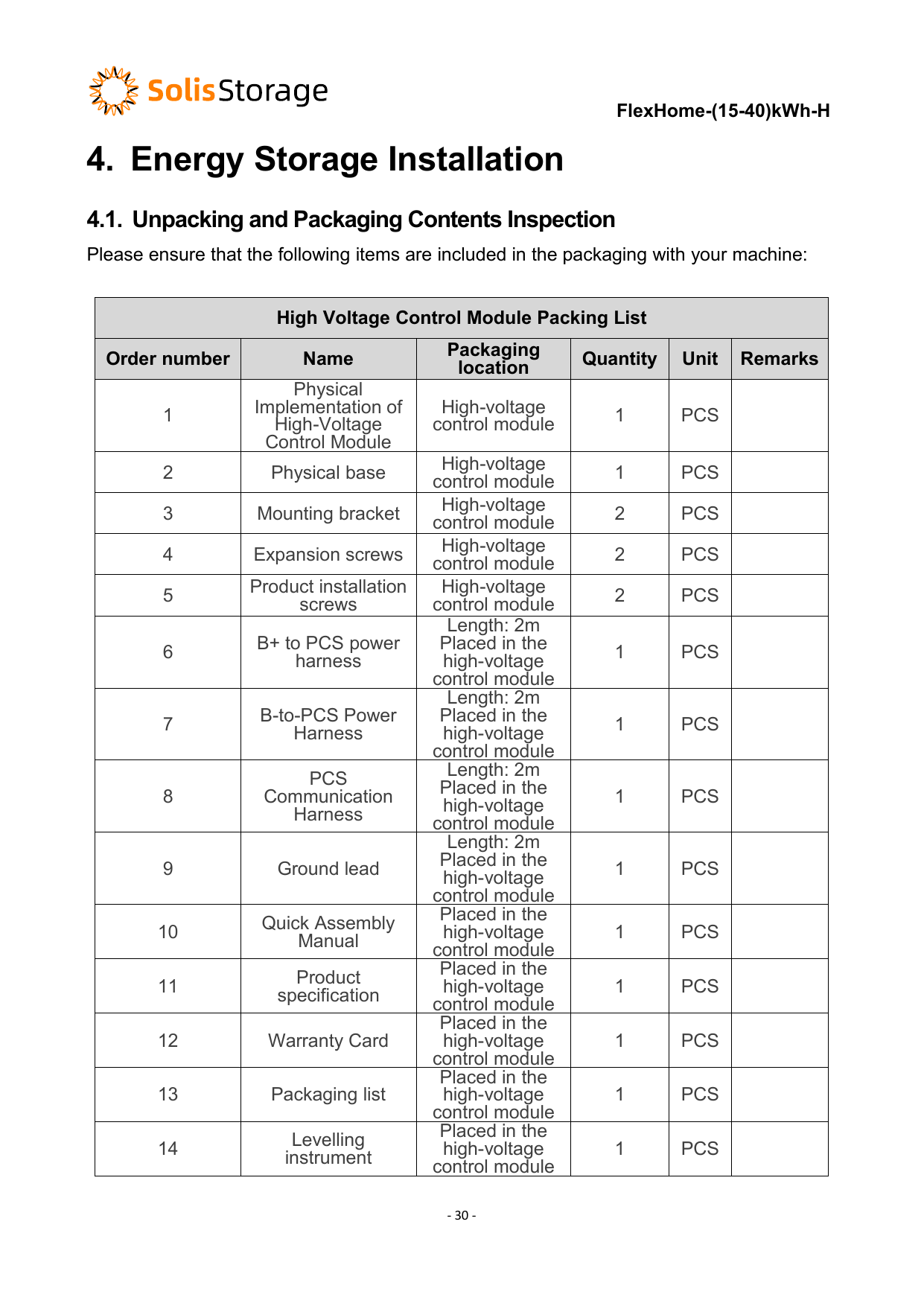

The official manual lists the high-voltage control module, physical base, two mounting brackets, two expansion screws, two product-installation screws, 2 m B+ and B− power harnesses, 2 m PCS communication harness, 2 m earth lead, quick assembly manual, product specification, warranty card, packing list and levelling instrument.
Compatibility and commissioning
Use only with the exact supported Solis FlexHome-H battery modules and a compatible Solis hybrid inverter. The complete inverter suffix, firmware, grid mode, module count, cable route, protection and any parallel configuration must be verified for the selected configuration. Qualified personnel must install and commission the system under the current manual and local electrical rules.
Not included
FlexHome-BAT5kWh-H battery modules, hybrid inverter, external protection, metering, project cabling beyond the documented package, structural work, installation and commissioning are separate.
Download the locally hosted official English FlexHome-H flyer and FlexHome-H user manual. Browse battery accessories.
